Surface dewatering channels

Closed channels made from metal or concrete for surface dewatering

It is a well-known and growing problem, especially in urban areas: surfaces are permanently sealed by building development, asphalting, concreting or paving. The lack of permeability leads to the accumulation of water during rainfall, and heavy rainfall can even cause damage due to flooding. Individually planned drainage solutions for connection to the sewer system, tailored to each individual situation, ensure efficient rainwater management. Our range includes channels with a fixed installation height as well as height-adjustable versions, walkable channels, grates, point inlets and gullies, through to heavy-duty versions or water collection channels in XXL format. Whatever surface you need to drain - we have the right solution for your requirements.

Stabile with grating supports facing outwards
– for drainage or dewatering

  • used as a drainage or dewatering channel
  • ideal for use on terraces and balconies or as a façade channel
  • grating supports turned outwards create an open space for the concave profile of the wall connection
  • individual inlet widths and installation heights possible on request
  • large selection of compatible gratings

Lamina Fix slotted channel
– with a fixed installation height

  • minimalistic and efficient
  • highly stable when met with shear forces thanks to eight embossed reinforcement sections per metre
  • can also be connected to a nozzle
  • coordinated flush and inspection boxes available, also for corners

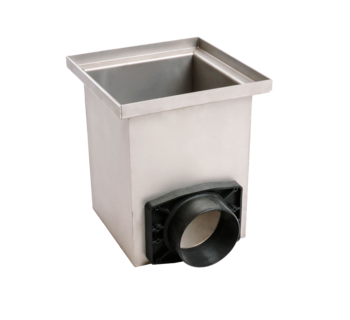

Point drainage Punkto
- point drainage of open spaces

  • riveted point drainage that can be walked over
  • integrated side nozzle
  • including dirt trap for easy cleaning and maintenance
  • large selection of compatible gratings



Lamina Magna slotted channel for heavy-duty drainage
– subtle resilience

  • reinforced channel body including slotted attachment
  • subtle yet highly resilient dewatering for heavy-duty use
  • coordinated flush and inspection boxes available
  • individual slot widths, drain bodies, end pieces and connectors produced on request




Gemini Magna double-slit channel
– understated look for heavy-duty use

  • double-slit channel with stone inlay
  • combines the benefits of a box channel with those of a slotted channel
  • revisable channel body thanks to removable stone inlay
  • solid construction for use in areas exposed to vehicle traffic



FerroMax water collection channel
– immediate storage in XXL

  • holding capacity to temporarily store significant volumes of water
  • controlled release into the sewer system via drain nozzles
  • base feet facilitate assembly and serve as concrete anchors to secure in place
  • connection brace between the frames
  • custom widths and heights manufactured on request



Mono-Fortis polymer concrete channel
– monolith meets polymer

  • seamless polymer model for heavy-duty use
  • monolithic structure combines channel body and grating in one
  • low weight compared with similarly sturdy materials
  • tongue and groove system at the channel joints with integrated rubber seal
  • compatible flush boxes and drainage units available in polymer concrete



Fortis concrete channel
– the alternative solution for heavy-duty use

  • dewatering channel for linear drainage under heavy-duty conditions
  • choice of steel, stainless steel or cast iron frame
  • watertight, high-strength and chemically resistant material
  • highly leak-tight surface structure
  • relatively low weight
  • tongue and groove system with integrated rubber seal
  • compatible heavy-duty mesh and longitudinal bar gratings; matching cast gratings available for cast frames



Fortis point drainage unit
– made from concrete

  • targeted point drainage for heavy-duty use
  • watertight, high-strength and chemically resistant material
  • with stainless steel dirt traps as standard for cleaning and maintenance
  • corresponding gully gratings available



Poly-Fortis polymer concrete channel
– with a steel, stainless steel or cast iron frame

  • ideal for linear drainage under heavy-duty conditions
  • high-quality resin admixture in the material
  • lower weight than standard channels
  • excellent resilience to a variety of chemicals
  • cassette-shaped moulded sections to anchor into concrete foundation
  • polymer drainage units, channel sections with attached nozzle and end pieces available
  • large selection of compatible heavy-duty gratings
  • Prisma or Zippa cast gratings for use with cast frame



Stabile Magna heavy-duty channel
– for drainage or dewatering

  • special structure for heavy-duty use
  • ideal for surface drainage and use on glued or welded drainage levels
  • individually produced to custom measurements
  • compatible corners, end pieces and connectors available
  • large selection of suitable heavy-duty gratings

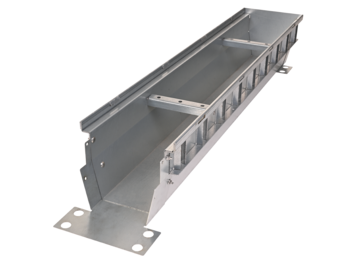

Ferro Magna heavy-duty dewatering channel
– with robust combination of materials

  • robust construction: combination of hot-dip galvanised steel and/or stainless steel alongside high-performance plastic
  • lower weight despite high load class (can be installed by one person)
  • offsets static and dynamic loads
  • ideal for areas exposed to traffic
  • easy handling thanks to integrated connectors
  • individual custom measurements possible on request



Solid manhole cover
– for car or truck loads

  • manhole covers for car or truck loads that can be paved over
  • surfacing can be inserted immediately
  • highly stable thanks to reinforcement elements
  • can be installed over existing gully covers
  • easy inspection
