Heavy-duty manhole cover Solid
Maximum stability, minimum effort
- manhole covers for car or truck loads that can be paved over
- surfacing can be inserted immediately
- highly stable thanks to reinforcement elements
- can be installed over existing gully covers
- easy inspection
Any questions? We are happy to help personally!
+49 5207/9504-5241 request@richard-brink.com
Order variants
“Solid” manhole covers: the name says it all. Developed for heavy-duty use, our products are made from either stainless steel or hot-dip galvanised steel depending on the design and have no trouble withstanding the long-term impact of cars and even trucks driving over them. They are available based on either load class B 125, with a material thickness of 3 mm, or load class D 400, with a thickness of 6 mm. The “Solid” covers help ensure that service and utilities shafts, e.g. for electricity, water, telephone connections or waste water, are securely sealed. The products can also be installed over existing gully covers, providing a convenient, stylish solution with a high-quality finish.
Flanges are incorporated along both the inner and outer sides of the frame. The outer flange can be paved down using slab material found in the surrounding area, while the inner flange features an EPDM gasket and forms the supporting base of the paving tray. The gasket reliably stops precipitation from seeping through the frame and also serves as an odour trap. Additional drainage holes in the tray and outer frame make sure any accumulating water is fed into the substrate of the adjacent paved areas, successfully preventing pooling.

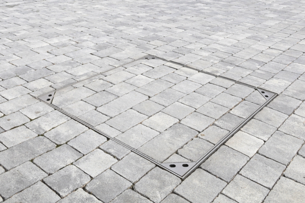

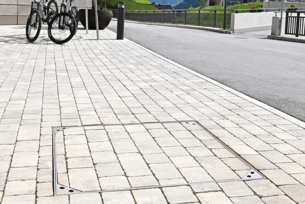

Together with the paved inlay, which has a standard internal height of 80 mm, the manhole cover blends in perfectly with its surroundings. The existing slab material is simply fixed in place or inserted over a base layer if needed. The result is a uniform surface interrupted only by the metal edges of the frame and cover. In the D 400 version, the triangular corners containing the pick holes catch the eye and make for a brilliant contrast with the flooring material.
While a great deal of time and effort is needed to first fill conventional covers with high-performance concrete – a material that is not always readily available – in order to achieve the required stability for heavy-duty use, the „Solid“ covers are much easier to install. Our manhole covers feature reinforcement struts under the sturdy paving tray. The trays can then be filled directly with the respective floor material, without it having to be reduced in height.
Heavy-duty manhole cover SolidAccessible by car |
|
|---|---|
|
Clear widths/outer dimensions: |
600 x 600 mm / 700 x 700 mm 800 x 800 mm / 900 x 900 mm 1.000 x 1.000 mm / 1.100 x 1.100 mm |
|
Interior height (tub): |
80 mm |
|
Height (support surface): |
90 mm |
|
Height incl. beams: |
150 mm 180 mm |
|
Material |
Stainless steel (V2A) 3.0 mm Hot-dip galvanised steel 3.0 mm |
|
Infos |
EPDM seal included |
Heavy-duty manhole cover SolidTruck accessible |
|
|---|---|
|
Clear widths/outer dimensions |
600 x 600 mm / 800 x 800 mm 800 x 800 mm / 1.000 x 1.000 mm 1.000 x 1.000 mm / 1.200 x 1.200 mm |
|
Interior height (tub) |
80 mm |
|
Height (support surface) |
96 mm |
|
Height incl. beams |
150 mm 180 mm |
|
Material |
Stainless steel (V2A) 6.0 mm Hot-dip galvanised steel 6.0 mm |
|
Infos |
EPDM seal included |
