Slotted channel Lamina Fix
- minimalistic and efficient
- highly stable when met with shear forces thanks to eight embossed reinforcement sections per metre
- can also be connected to a nozzle
- coordinated flush and inspection boxes available, also for corners
Available in shop
Standard sizes available in 2 to 3 business days
Special sizes available in 5 to 15 business days

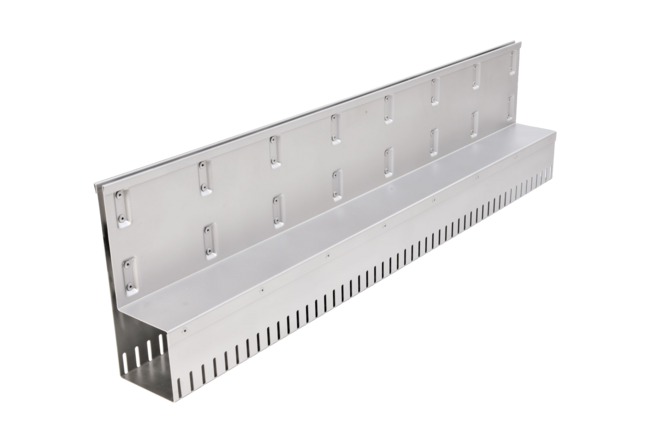

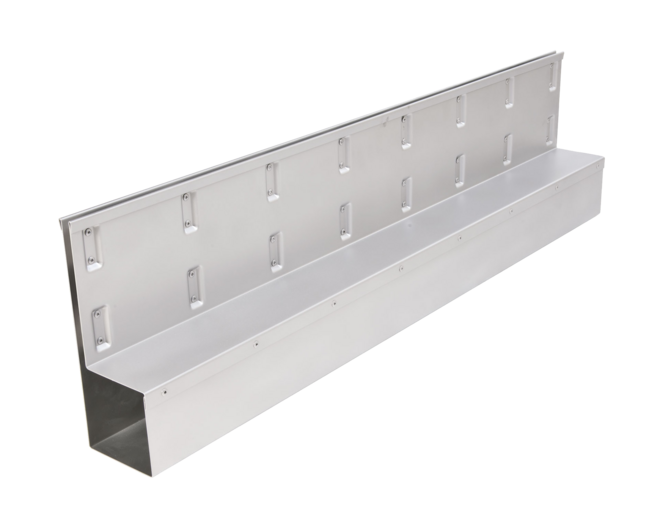

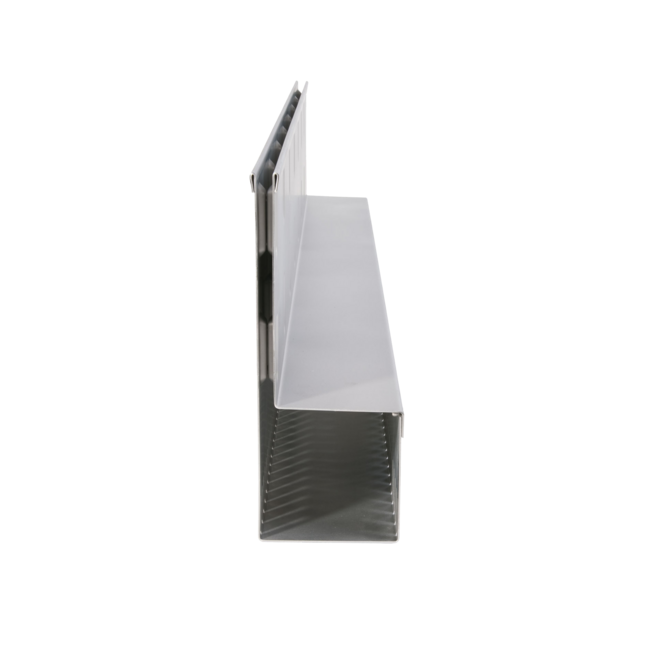

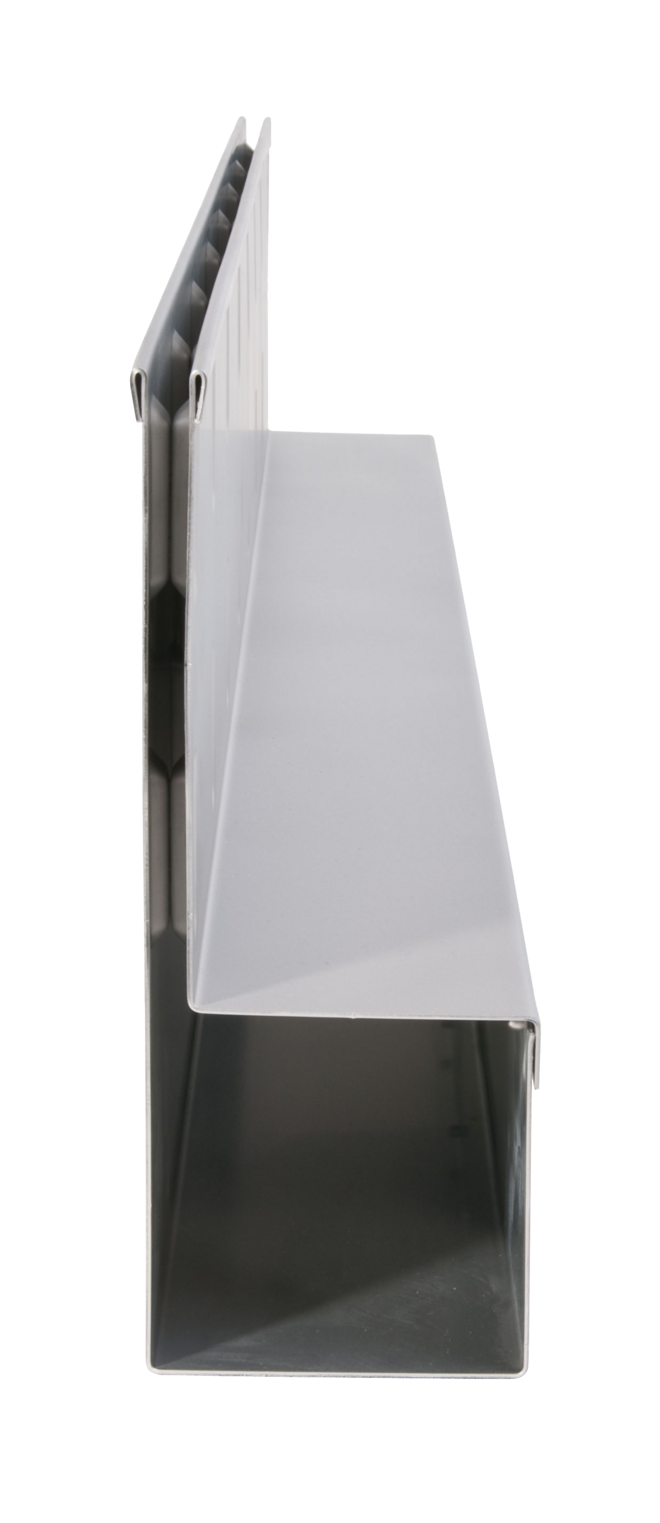

With our Lamina Fix slotted channel, we offer a highly efficient yet discreet dewatering solution. It is ideal for situations in which the linear drainage solution should not distract from a project’s overall architecture. With eight embossed reinforcement sections per metre, the channel is enduringly resistant to shear forces. Rainwater that runs in through the slot is reliably directed into the generously proportioned channel body, which then guides it to the dewatering points. The water can also seep into the substrate through the drainage slots. Depending on the installation location, the slotted channel can be attached to a nozzle which then securely diverts the water if the substrate is no longer able to hold any more water. The channel is produced in a standard length of one metre, while custom versions in lengths of up to three metres are also possible.

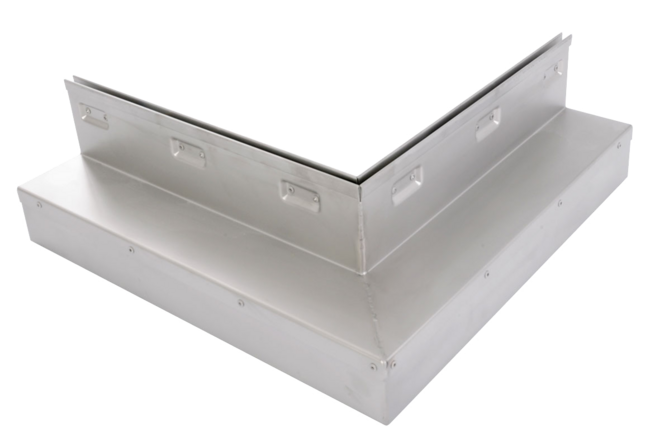

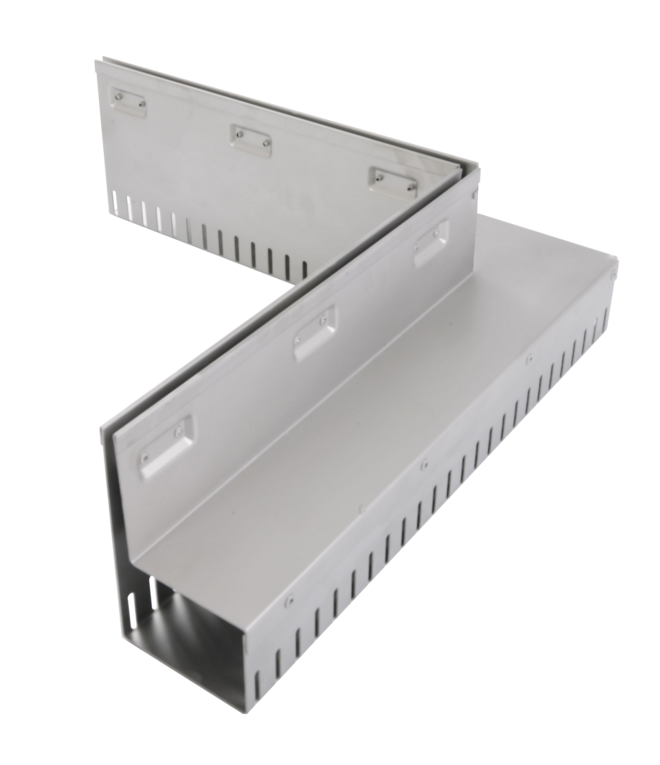

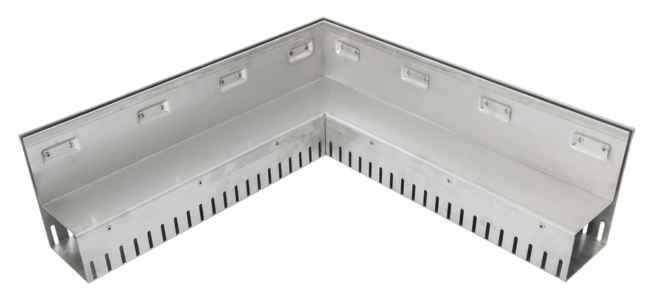

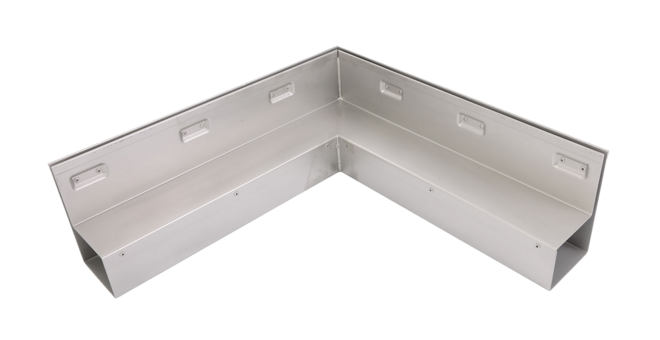

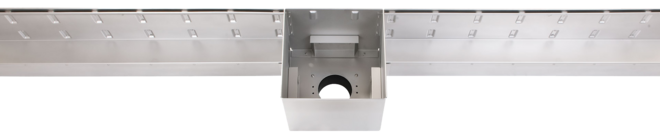

Inspection and flush boxes can be integrated for ease of maintenance. We also provide matching end and connector pieces as well as outer and inner corners. Besides the fixed version, our product range features a height adjustable drainage model in the form of the Lamina channel.
Slotted drainage or dewatering channel Lamina Fix |
|
|---|---|
|
Inlet widths |
80 mm / 100 mm* *applies only to drainage channel |
|
Slot width |
10 mm |
|
Lengths |
1.000 mm up to 1,500 mm one-piece possible |
|
Neck height / total height: |
65 mm / 140 mm 95 mm / 170 mm 160 mm / 260 mm |
|
Material |
Stainless steel (V2A) 1.5 mm Hot-dip galvanised steel 1.5 mm |
|
Infos |
Corners possible Individual division possible Cutting service* *applies only to drainage channel |
|
Accesorries |
End pieces U-connector Outside and inside corners Inspection boxes Flushing cisterns |

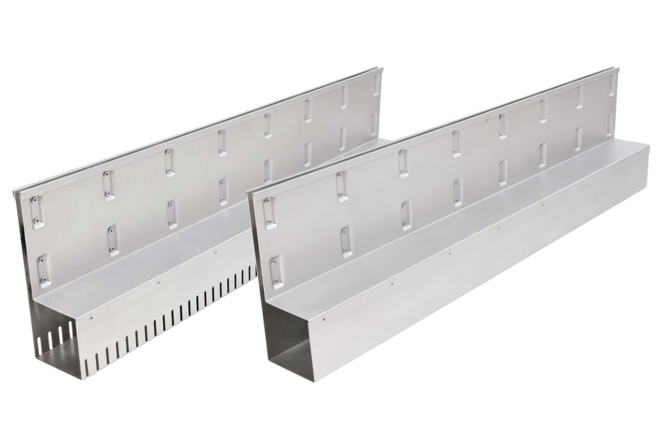

Entwässerungsrinne
Drainagerinne
Slotted channel Lamina Fix

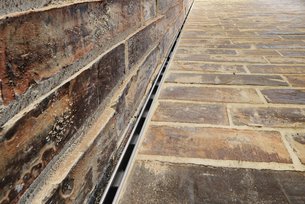

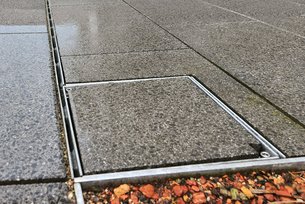

Our „Lamina Fix“ in action

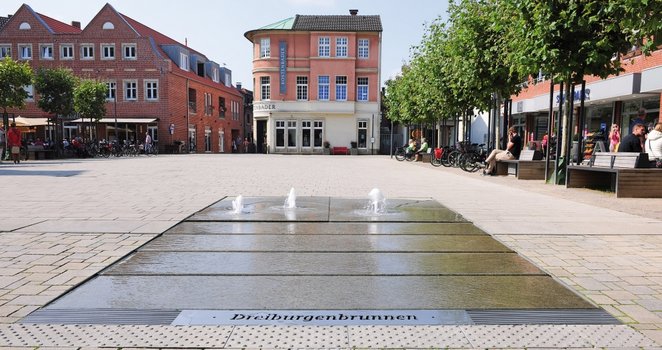

Drainage solutions from Richard Brink for a barrier-free water feature
With the aim of respecting the town’s history while also revamping the public space for its residents, a unique series of fountains has been installed in Lüdinghausen. The combination of partly engraved natural stone slabs, fountains and drainage…
Read more

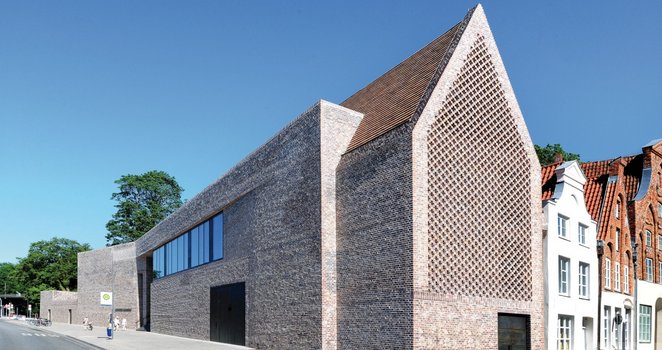

Slotted channels drain the colonnade of the European Hanseatic Museum
The architecture of the new building for the European Hanseatic Museum bridges the gap between past and present. A central, covered stairway connecting the main building with the castle friary also provides access to the museum’s new building.…
Read more

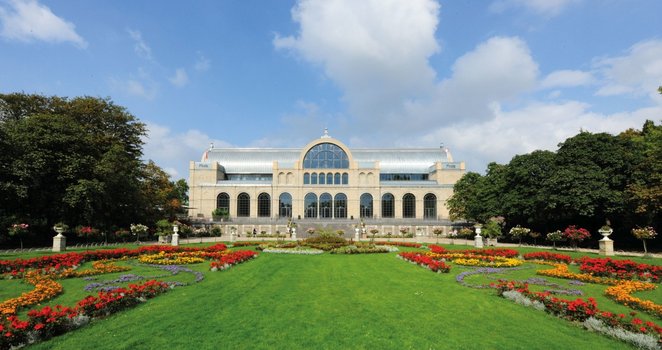

Special measurements for a special building
