Poly-Fortis with slotted channel attachments
- corresponding slotted channel attachment for heavy-duty use
- available for car or truck loads
Available in shop
Standard sizes available in 2 to 3 business days

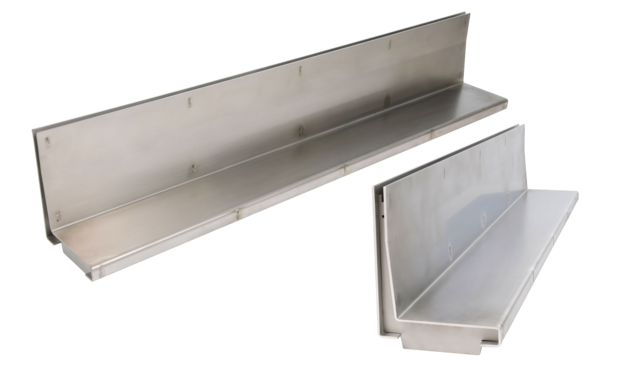

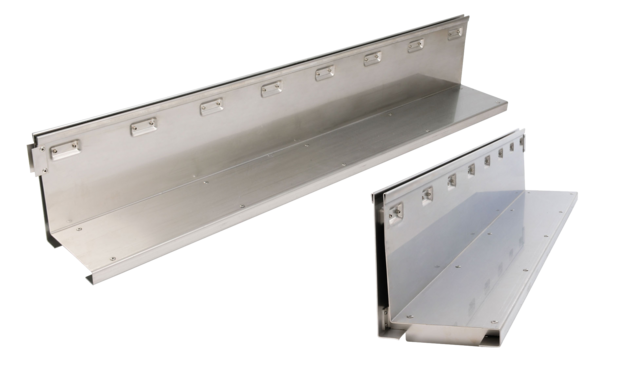

If you are looking to combine our Poly-Fortis heavy-duty dewatering channel with a subtle finish, our highly resilient slotted attachments made from stainless steel or hot-dip galvanised steel can be used to cover the channel rather than a grating. Eight embossed reinforcement sections ensure the channel remains resistant to shear forces for a long time to come. We produce the attachments either in a sheet thickness of 1.5mm that meets the requirements of load class C 250 or made from 3mm-thick material to satisfy class D 400. Used together with the Poly-Fortis polymer concrete channels, this makes for a powerful yet subtle dewatering solution for heavy-duty use.
Concrete channel Poly-Fortis |
|
|---|---|
|
Widths (nominal size): |
155 mm (DN 100) 206 mm (DN 150)* *DN 150 only available in height 200 and 250 mm available **DN 200 only available in height 300 mm for hot-dip galvanized steel frames for cast iron gratings, cast iron frames for cast iron gratings and stainless steel frames |
|
Load class: |
D 400 E 600 (depending on the height used) |
|
Lengths |
500 mm 1.000 mm |
|
Heights |
150 mm 175 mm 200 mm* 250 mm* 300 mm** |
|
Material |
Polymer concrete |
|
Frames depending on grate support optionally made of: |
hot-dip galvanised steel stainless steel cast iron |
|
Accessories |
End pieces Sink boxes incl. dirt trap made of V2A Gutters with integrated connection pieces |
Schwerlast-Schlitzaufsätzefür Schwerlast-Entwässerungssysteme |
|
|---|---|
|
Schlitzbreite |
10 mm |
|
Breiten (Nennmaß) |
145 mm (DN 100) 195 mm (DN 150) |
|
In Anlehnung an die Belastungsklassen |
C 250 D 400 |
|
Längen |
500 mm 1.000 mm |
|
Halshöhe / Gesamthöhe: |
160 mm / 182 mm (C 250) 160 mm / 185 mm (D 400) |
|
Material |
Edelstahl (V2A) |
|
Zubehör |
Endstücke Revisionskästen Spülkästen |
Stutzen Stücke
