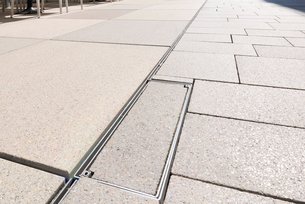

Fortis with slotted channel attachments
- the slotted channel attachment is a perfect fit to top the heavy-duty dewatering channel made from concrete
- subtle dewatering solution for heavy-duty use
- either for car or truck loads
Available in shop
Standard sizes available in 2 to 3 business days
If you are looking to combine our Fortis heavy-duty dewatering channel with a minimalist finish, our highly resilient slotted attachments made from stainless steel or hot-dip galvanised steel can be used to cover the channel rather than a grating. Eight embossed reinforcement sections ensure the channel remains resistant to shear forces for a long time to come. We produce the attachments either in a sheet thickness of 1.5mm that meets the requirements of load class C 250 or made from 3mm-thick material to satisfy class D 400. Together with the Fortis concrete channels, this makes for a powerful yet subtle dewatering solution for heavy-duty use.
Concrete channel Fortis |
|
|---|---|
|
Widths (nominal size): |
155 mm (DN 100) 206 mm (DN 150)* *DN 150 only available in height 200 mm |
|
Load class: |
D 400 |
|
Lengths |
500 mm 1.000 mm |
|
Heights |
80 mm 150 mm 175 mm 200 mm* *DN 150 only available in height 200 mm |
|
Material |
Fibre-modified concrete |
|
Frames depending on the grate layer optionally made of: |
hot-dip galvanised steel stainless steel cast iron |
|
Accessories |
End pieces Sink boxes incl. dirt trap made of V2A Gutters with integrated connection pieces |
Heavy-duty slot attachmentsfor heavy duty drainage systems |
|
|---|---|
|
Slot width |
10 mm |
|
Widths (nominal size): |
145 mm (DN 100) 195 mm (DN 150) |
|
In accordance with the load classes: |
C 250 D 400 |
|
Lengths |
500 mm 1.000 mm |
|
Neck height / total height: |
160 mm / 182 mm (C 250) 160 mm / 185 mm (D 400) |
|
Material |
Stainless steel (V2A) |
|
Accessories |
End pieces Inspection boxes Flushing cisterns |
