Drainage channel Hydra
Simply drain steplessly

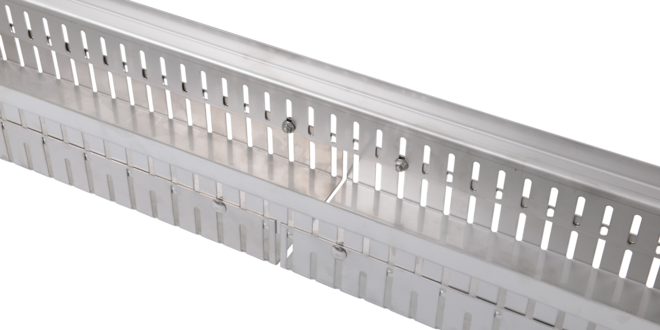

- laterally infinitely adjustable in height

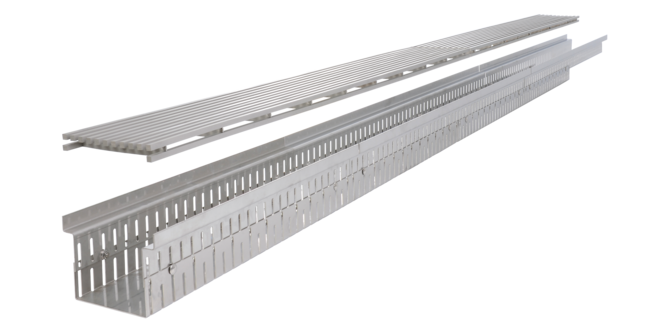

- Endlessly extendable without connectors thanks to modular design

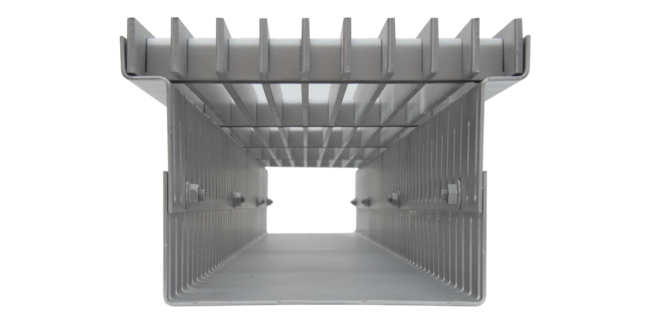

- outwardly folded grating supports create distance between wall connection and channel body
- individual widths and heights available
Any questions? We are happy to help personally!
+49 5207/9504-5241 request@richard-brink.com Order now

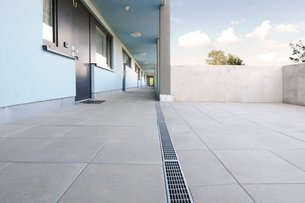

![[Translate to Englisch:] Die höhenverstellbare Drainagerinne „Hydra“ eignet sich besonders für barrierefreies Bauen](/fileadmin/user_upload/1_Hydra_REF_01_1920x960.jpg)

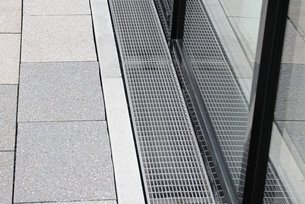

![[Translate to Englisch:] Die Rinne Hydra ist besonders gut für geklebte und geschweißte Wandanschlüsse mit Dämmkeil geeignet](/fileadmin/user_upload/1_Hydra_REF_02_1920x960.jpg)

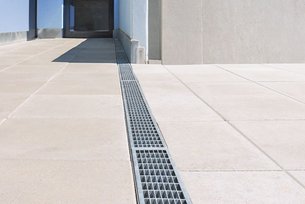

![[Translate to Englisch:] Dank des modularen Aufbaus lässt sich die Drainagerinne problemlos ohne zusätzliche Verbinder verlängern](/fileadmin/user_upload/1_Hydra_REF_03_1920x960.jpg)

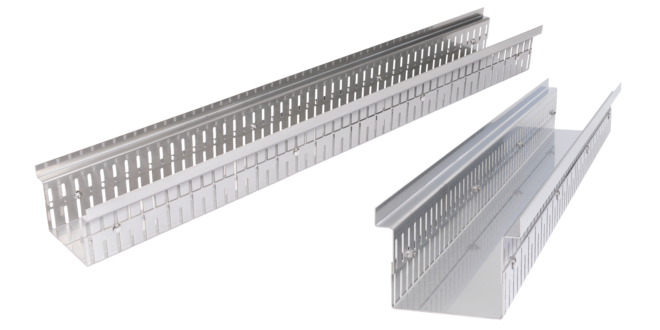

Our Hydra channel is a steplessly height-adjustable drainage channel featuring an integrated gravel stop. This means it can be easily raised or lowered during installation to reflect the ground level on-site and thus meets the requirements of barrier-free building access. Available in stainless steel or hot-dip galvanised steel, the Hydra can be extended without the need for additional connectors thanks to its modular construction. Just like the Stabile drainage channel with its fixed installation height, the Hydra also features grating supports that are turned outwards. The resulting distance between the wall connection and the channel body makes the channel especially well-suited for glued and welded wall connections featuring an insulation wedge.
Alongside the standard inlet widths and channel heights, we are also able to produce individually adapted versions as and when required. A broad selection of compatible gratings is available for the Hydra drainage channel.
Height-adjustable drainage channel Hydra |
|
|---|---|
Inlet widths |
100 mm 140 mm 160 mm 200 mm 250 mm |
Lengths |
1.000 mm Pre-assembly from half-meter and meter segments up to a length of 2,500 mm on request |
Heights (adjustment ranges) |
von 40 - 55 mm* von 54 - 69 mm von 70 - 100 mm von 100 - 160 mm *only available in stainless steel (V2A) for inlet widths 100 and 140 mm |
Material |
Stainless steel (V2A) 1.5 mm Hot-dip galvanized steel 1.5 mm |
Info |
Corners possible Individual partitioning possible Individual inlet widths and installation heights possible |
Accessories |
End pieces Corner connector Grate lock |
