Drainage channel Hydra Express

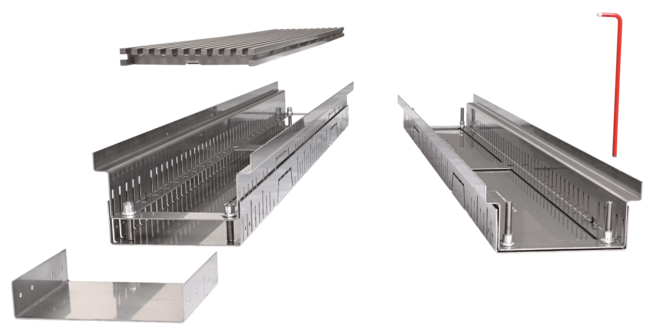

- height can be smoothly adjusted from above
- channel can be quickly and conveniently adapted to the installation location

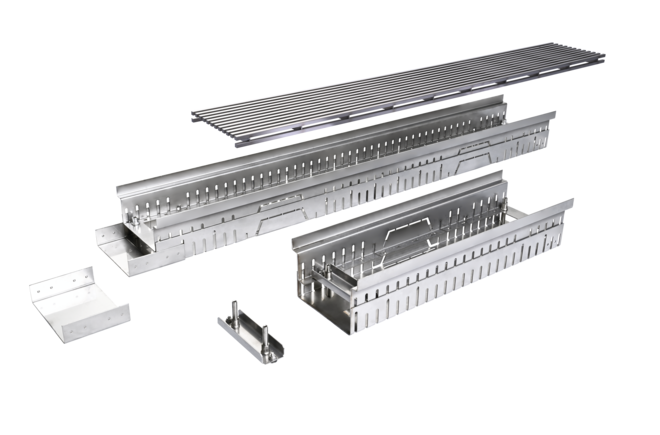

- extendible with the aid of U-connectors
- customer-specific measurements can be realised at any time
![[Translate to Englisch:] Die Balkon und Terrassenrinne wird aus Edelstahl oder feuerverzinktem Stahl nach Maß gefertigt](/fileadmin/user_upload/2_HydraExpress_FS_01_1920x960.png)
![[Translate to Englisch:] Die Hydra Express Rinne lässt sich von oben schnell und einfach in der Höhe anpassen](/fileadmin/user_upload/2_HydraExpress_FS_02_1920x960.png)
![[Translate to Englisch:] Die Richard Brink Drainagerinnen haben eine besonders hohe Verarbeitungsqualität und Passgenauigkeit](/fileadmin/user_upload/2_HydraExpress_FS_03_1920x960.png)
Available in shop
Standard sizes available in 2 to 3 business days
Special sizes available in 5 to 15 business days

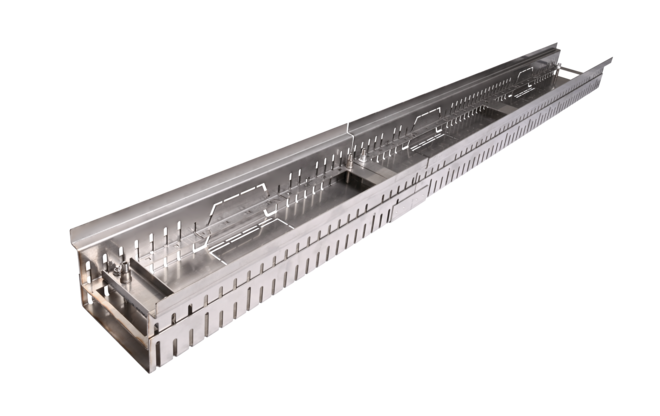

Just like our height-adjustable Hydra drainage channel, the Hydra Express is especially suited for use on terraces and balconies. Its height can be smoothly adjusted from above. An electric screwdriver or similar tool is all that is needed to quickly and conveniently raise or lower the channel in line with the respective installation location. With the help of optional U-connectors or by offsetting the height-adjustable side panels, the channel can be extended as required and the segments can simply be fixed together. Made from stainless steel or hot-dip galvanised steel, the channel can be combined with a number of matching gratings. Alongside the standard models, we can also implement custom measurements at short notice.
Height adjustable drainage channel Hydra-Express |
|
|---|---|
|
Inlet widths |
100 mm 140 mm 160 mm 200 mm 250 mm |
|
Lengths |
1.000 mm |
|
Heights (Adjustment ranges) |
from 40 - 55 mm* from 54 - 69 mm from 70 - 100 mm from 100 - 160 mm *only available in stainless steel (V2A) for inlet widths 100 and 140 mm |
|
Material |
Stainless steel (V2A) 1.5 mm Hot-dip galvanised steel 1.5 mm |
|
Info |
Corners possible Individual partitioning possible Individual inlet widths and installation heights possible |
|
Accessories |
End pieces Corner connector Grate lock |
