Shortenable shower channel Seca
Channel profile meets stainless-steel drain body
- Stainless-steel drain body for central or wall-side connection
- Comes with factory-fitted sealing collar
- Articulated feet enable quick height adjustment
- Shortenable and attachable shower channels in two thicknesses
- Attachment in channel profile can be removed for cleaning
Any questions? We are happy to help personally!
+49 5207/9504-5241 request@richard-brink.com

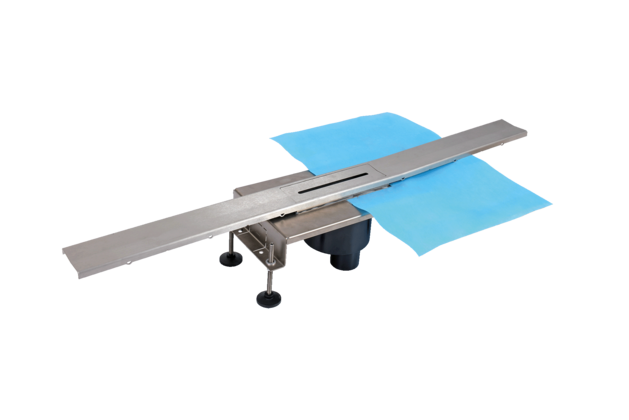

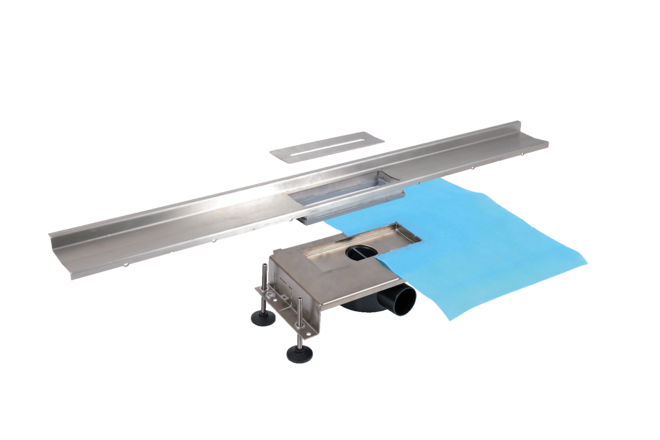

Our Seca shower-channel system consists of a stainless-steel drain body complete with nozzle and siphon as well as channel profiles that are attached using rubber seals. The drain bodies can be supplied for a central or wall-side connection and come with a factory-fitted self-adhesive sealing collar. Height-adjustable articulated feet enable the height to be easily adjusted during installation and uneven surfaces to be compensated for in line with your project-specific installation situation.
The Seca Max and Seca Solid shower channel profiles come in standard lengths of 900mm, 1,200mm and 1,500mm. They can be cut to size at the factory or on site in accordance with the required dimensions and then affixed to the substrate. The polished stainless steel shower-channel profiles contain an insertable attachment that can be quickly and easily removed for cleaning. The Seca Max shower channel has a material thickness of 1.5mm, and the Seca Solid variant is particularly stable at 6mm. Both channels are available for tile thicknesses of between 8mm and 12mm or 18mm and 22mm.
Drain housing |
|
|---|---|
Materials |
Stainless steel (V2A) 1.5 mm |
Inlet widths |
174 mm |
Lengths |
366 mm |
Height ranges |
88 mm - 134 mm |
Cut-to-length shower channel Seca Max |
|
|---|---|
Materials |
1.5 mm stainless steel (V2A) |
Inlet widths |
70 mm |
Lengths |
900 mm 1.200 mm 1.500 mm |
Heights |
14 mm 24 mm |
Details |
for tile thicknesses: 8 mm to 12 mm 18 mm to 22 mm |
Cut-to-length shower channel Seca Solid |
|
|---|---|
Materials |
6.0 mm stainless steel (V2A) |
Inlet widths |
70 mm |
Lengths |
900 mm 1.200 mm 1.500 mm |
Heights |
14 mm 24 mm |
Details |
for tile thicknesses: 8 mm to 12 mm 18 mm to 22 mm |
