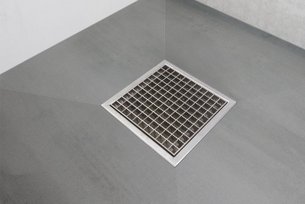

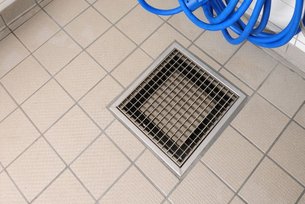

High-performance floor drains Collectus
For point drainage
- Highly efficient point drainage
- Leak-tight welded gully body
- Includes bevelled seal flange and welded nozzle in DN 100 tapering to DN 70, DN 100 and DN 200
- Nozzles either vertical (DN 100, DN 200) or horizontal (DN 100)
Any questions? We are happy to help personally!
+49 5207/9504-5241 request@richard-brink.com
Our compact Collectus floor drains provide a practical alternative or addition to the industrial, shower and kitchen channels and can be used wherever a point drainage solution is required. The leak-tight welded gully bodies feature a bevelled seal flange and welded pipe in DN 100 narrowing to DN 70, DN 100 and DN 200.
High-performance floor drains Collectus |
|
|---|---|
|
Inlet dimensions |
250 x 250 mm |
|
Outer dimensions |
290 x 290 mm |
|
Support height |
45 mm |
|
Total height |
400 mm¹ ² 250 mm³ 155 mm⁴ 180 mm⁵ |
|
Available nozzle shape / diameter |
perpendicular nozzle DN 70 = Ø 75 mm ²vert spigot DN 100 = Ø 110 mm ³vertical spigot DN 200 = Ø 204 mm ⁴Waagonal spigot DN 70 = Ø 75 mm ⁵Scarfed spigot DN 100 = Ø 110 mm |
|
Materials |
Stainless steel (V2A) 1.5 mm |
|
Details |
50 mm flange all round Various grate covers to choose from, also slip-resistant and tileable stainless steel shell |
