Industrial, shower and kitchen channel Collecta
- leistungsstarke Indoor-Entwässerung in XXL
- Höhenverstellung über Stelzlager
- auf Wunsch auch als V4A-Variante erhältlich
- integrierte Bodenabläufe mit Geruchsverschluss und Sieb
- zusätzlich Eckausbildungen, T-Stücke sowie verfügbar
- vier verschiedene Rostarten je nach Anwendungszweck
- für die Belastungsklassen K 3, L 15 und M 125
Available in shop
Standard sizes available in 2 to 3 business days
Special sizes available in 5 to 15 business days
Our height-adjustable Collecta industrial, shower and kitchen channels are the largest dewatering systems we manufacture for indoor use. They can be installed wherever larger volumes of water tend to accumulate – be it due to continuously high use, for example in communal showers in swimming baths, or the sporadic need to remove waste water in commercial kitchens and industrial plants.

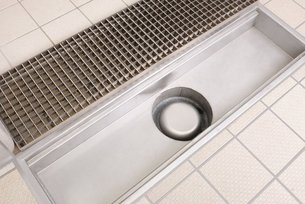

The channels with an inlet width of 160mm feature nozzles in DN 100. From an inlet width of 250mm, nozzles can be supplied in either DN 100 or DN 200. The integrated 110mm or 204mm-wide floor drains are fitted with an odour trap and screen. In addition to this, we offer drains with vertical or horizontal nozzles that sit on the base panel with their flange.

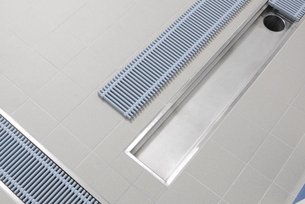

Depending on the intended purpose and installation location, you can choose from four different gratings. For swimming baths, we recommend our 7x7mm longitudinal bar gratings as their 7mm bar width means they can comfortably be walked over barefoot. Wherever grease and lubricants are discharged into the waste water, slip-resistant mesh gratings are advisable as their serrated tread surfaces prevent slipping. We also offer high-quality, durable swimming bath gratings made from PVC.
Industrial and commercial kitchen channel Collecta |
|
|---|---|
|
Inlet widths |
160 mm* 250 mm** 500 mm** |
|
Connection piece |
*DN 100 = Ø 110 mm **DN 200 = Ø 204 mm |
|
Inlet lengths |
1.005 mm 1.505 mm 2.005 mm 3.005 mm |
|
Total height |
von 90 - 140 mm |
|
Gutter height without spigot |
80 mm 60 mm with the following inlet widths / lengths: 160 mm / 1,005 mm 160 mm / 1,505 mm 160 mm / 2,005 mm |
|
Materials |
Stainless steel (V2A) 1.5 mm |
|
Details |
Individual dimensions possible 50 mm flange all round Various grate covers to choose from, also slip-resistant, PVC swimming pool grating and tileable stainless steel shell |
