Chimney cap with shuttering frame
Integrated system for concrete fill
- With shuttering frame for concrete fill
- Custom-made entirely from stainless steel
- Easy assembly: no casing or stripping necessary
- Suitable for new builds and renovations
- Five different shapes to choose from
Any questions? We are happy to help personally!
+49 5207/9504-5241 request@richard-brink.com
![[Translate to Englisch:] Kaminabdeckung mit erhöhter Zeltdach-Form](/fileadmin/user_upload/produkte/schornsteinabdeckung/teaser-dach2.png "[Translate to Englisch:] Erhöhte Zeltdach-Form aus Edelstahl")
Make time-consuming work a thing of the past with our chimney caps complete with shuttering frames. While casing and stripping tends to involve two trips to the construction site, our system necessitates just the one installation appointment. Installation is complete in just a couple of steps: first, the made-to-measure shuttering frame and the expansion joint plate are placed on the chimney head. These components prevent concrete from spilling over into the cladding and chimney flue during the subsequent steps. The shuttering frame is then filled with concrete before the cover is fitted and screwed onto the frame. Whether for new builds or the complete restoration of dilapidated chimney heads – we offer a convenient solution for every application.
When placing your order, all we need are the exact external dimensions of the chimney and, where applicable, the external cladding measurements. We automatically calculate the projections for you. We also manufacture additional accessories such as sheet metal rings for brick flues or expansion joint plates for insulated flues, in line with individual specifications.
Chimney capwith shuttering frame |
|
|---|---|
|
Models |
Corrugated shape Round shape with straight eaves Tent roof form 1 Tent roof form 2 Straight shape |
|
Dimensions |
The "RB-SA 1" type chimney caps are manufactured according to your specifications. The dimensions required for this are the external dimensions of the chimney including cladding, if available. |
|
Support diameter |
Stainless steel (V2A) 12 mm |
|
Materials |
Stainless steel (V2A) 1.0 mm Copper on request |
|
Details |
Cover with formwork frame for concreting on. Place on the chimney, set the formwork frame in concrete and you're done. All models can also be hinged on request |
|
Accessories |
Jackdaw grille Sheet metal ring Expansion joint sheet metal Cladding suspension |
Customers also bought

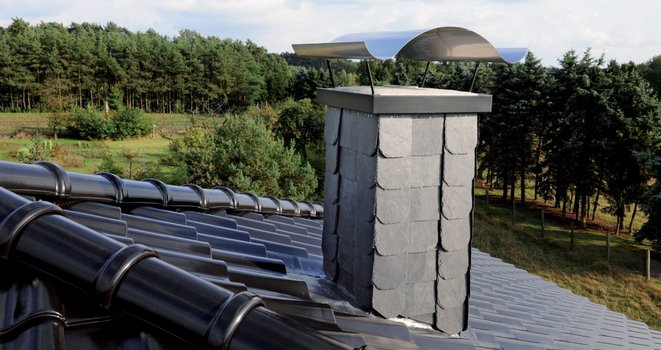

Our chimney caps in action
