Dirt trays Captus with boot scrapers

For a clean entrance area

  • Individual solutions for every entrance area
  • Large selection of grating designs
  • Dirt tray including latching system available
  • Online configurator for our boot-scraper range

Any questions? We are happy to help personally!

+49 5207/9504-5241 request@richard-brink.com Configure now

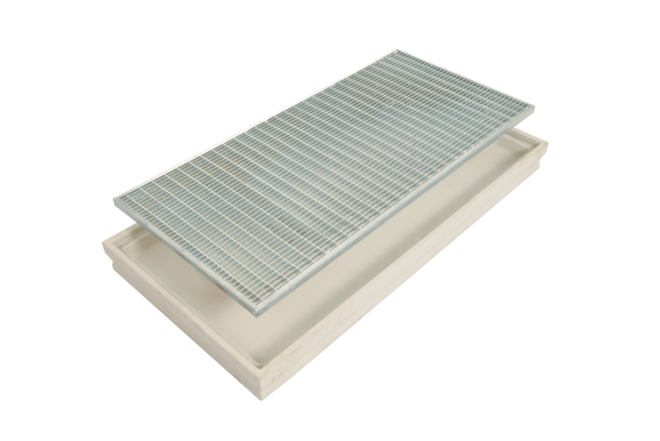

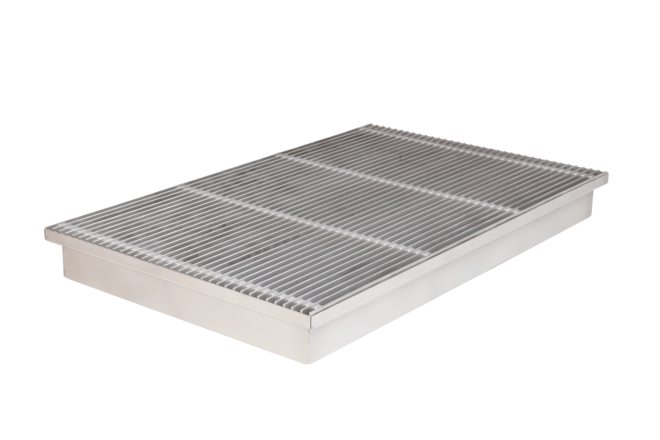

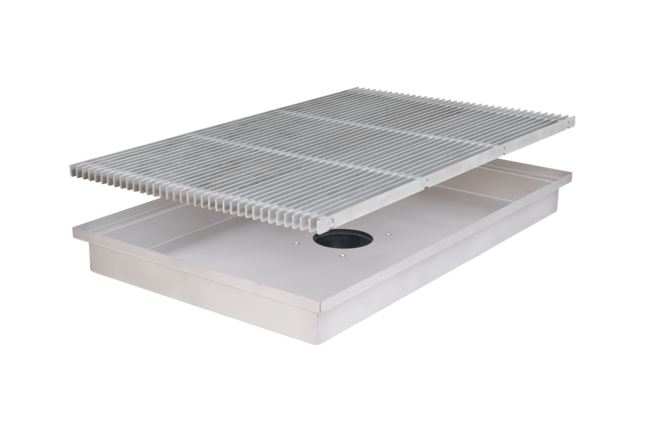

Our Captus dirt trays and corresponding boot scrapers, made from either stainless steel or hot-dip galvanised steel, provide custom systems for every entrance area that come together to create a functional unit. The system is based around the tray, which we manufacture to your project-specific dimensions, similarly from stainless steel or hot-dip galvanised steel, or even concrete. It comes with a drain nozzle as standard to drain away any accumulating precipitation, but is also available without a nozzle.

The boot scraper is manufactured based on the dimensions of the dirt tray and installed in the outwardly projecting support base. A wide range of designs is available to suit every preference. Rather than being fitted with a foot grating, the dirt tray can also be supplied with an entrance mat, featuring either rubber and brush inserts or a carpeted surface.



Direct online configuration in just a few steps

Our online configurator for our boot-scraper range is available now. Complete or input all options for the grating and dirt tray you require and get an instant live preview and ready-to-order product set.



Boot scrapers

Material: Load class:
V2A stainless steel
hot-dip galvanised steel
pedestrian areas




Dirt tray (metal)

Material: Material thickness: Dimensions:
V2A or V4A stainless steel
hot-dip galvanised steel
1.5 mm

tailor-made to suit individual customer requirements

Nozzle:

DN 50, DN 70, DN 100 and DN 150

Central, custom position or none

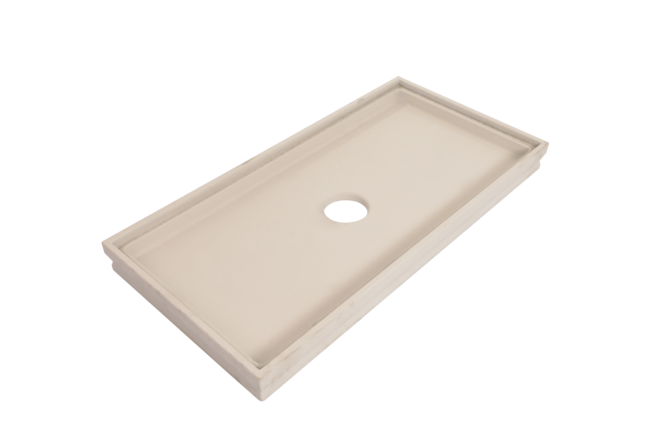

Dirt tray (fibre-modified concrete)

Length: Width: Height:
600 mm
750 mm
1.000 mm

400 mm
500 mm
500 mm

80 mm

Info:
incl. hole cut-out in DN 100
